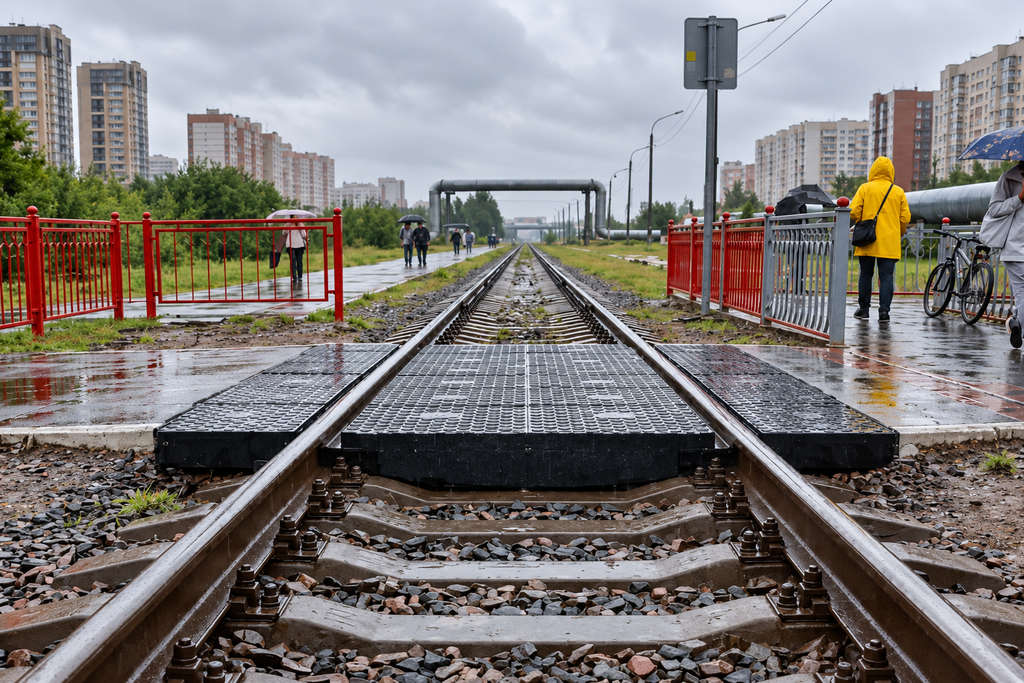

Rubber-cord deckings, project 2741.000, in accordance with TU 22.19.73.110-001-78969127-2018 for DO and KB-65 fastenings
Rubber-cord deckings for pedestrian crossings are a reduced number of slabs used for vehicle crossings. The pedestrian crossing project is selected in accordance with the required width, type of sleepers (reinforced concrete or wooden) and their fastening type.
| A crossing of the required width is assembled using the appropriate number of slabs, in multiples of 0.546 m | |||||||
| № п/п | Part name | Part number | Dimensions, mm | Quantity per set of 1.64 m, pcs | Weight, kg | ||
| for RC sleepers | for wooden sleepers | ||||||
| 1 | Inner slab | 2741.001 | 1582 x 546 x 213 | 3 | 3 | 199 | |
| 2 | Outer slab | 2741.002 | 573 x 546 x 213 | 6 | 6 | 70 | |
| 3 | Outer pad | 2741.003 | 546 x 182 x 48 | 6 | 6 | 4 | |
| 4 | Inner pad | 2741.004 | 1098 x 546 x 55 | 3 | — | 38 | |
| 5 | Fastening assembly kit | — | — | 1 | 1 | 180 | |
No diagram is available.
No project photos are available.
