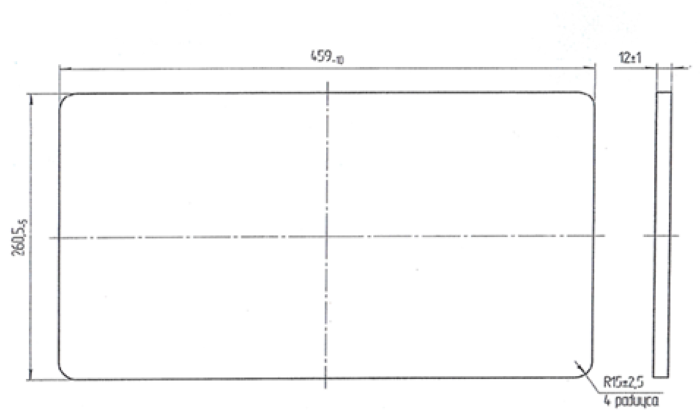

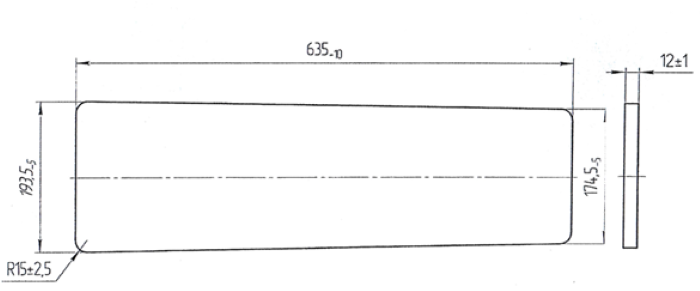

Elastic pads are used together with reinforced concrete half-sleepers (LVT-M, LVT-M1 blocks) on metro tracks in a ballastless track superstructure with reduced vibration. The elastic pads are designed to support the trapezoidal concrete blocks of the LVT-M and LVT-M1 systems and to damp vibration loads.
The elastic pads are manufactured from natural rubber or composite polyurethane.
Warranty period: 3 years from the date of their installation in the railway track.
The product range of elements for the PSO-A1 strip includes:
| No. | Name | Parameters |
|---|---|---|
| 1 | Initial LED light fixture | L=1500 mm, red light, 48V, power 10 W/m, protection class IP36, aluminum housing |
| 2 | Intermediate LED light fixture | L=1500 mm, red light, 48V, power 10 W/m, protection class IP36, aluminum housing |
| 3 | Final LED light fixture | L=1500 mm, red light, 48V, power 10 W/m, protection class IP36, aluminum housing |
| 4 | Embedded profile for light fixture (A1) | L=3000 mm |
| 5 | Mounting profile (A1) | overall dimensions 46×20×3000 mm |
No project photos are available.
