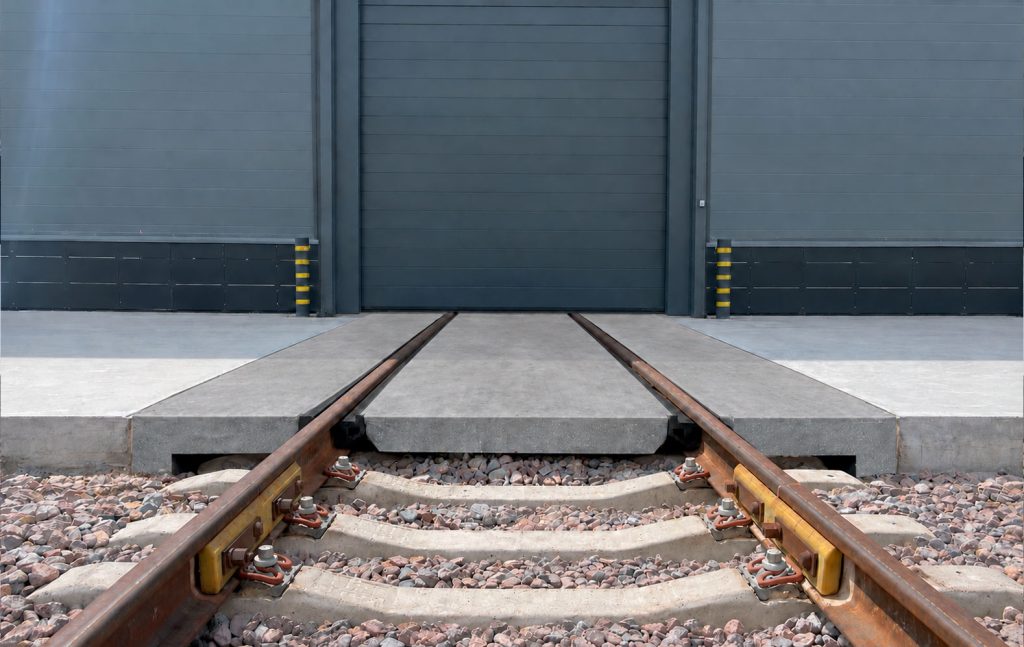

Concrete deckings for vehicle passage and pedestrian walkways consist of reinforced concrete slabs and elastic rubber profiles designed to prevent slab displacement during vehicle movement across the railway crossing.
The required decking width is achieved by using the appropriate number of slabs, in multiples of 1.5 m.
| Наименование | Размеры, мм | Масса, кг | Кол-во, шт |
|---|---|---|---|
| Плита внутренняя | 1500 × 1300 × 190 | 855 | 3 |
| Плита внутренняя с отбойником | 1500 × 1300 × 240 | 925 | 2 |
| Плита наружная | 1500 × 1160 × 150 | 615 | 8 |
| Прокладка внутренняя | 1000 | 12.8 | 14 |
| Прокладка наружная | 1000 | 21 | 12 |
| Комплект узла крепления | 16 |
