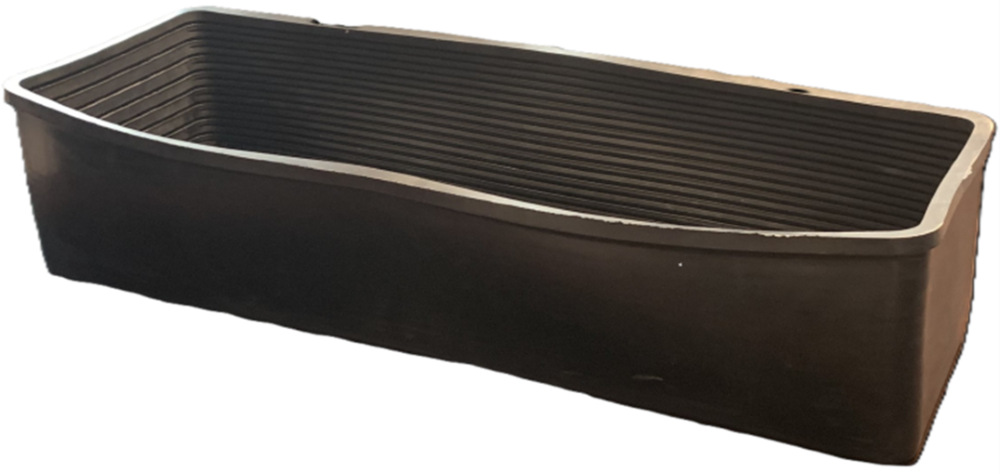

Rubber covers are used together with reinforced concrete half-sleepers (LVT-M, LVT-M1 blocks) on metro tracks in a ballastless track superstructure with reduced vibration. The covers support elastic pads with trapezoidal reinforced concrete blocks and are cast into the track concrete.
The covers are manufactured from styrene-butadiene rubber (SBR).
Warranty period: 3 years from the date of their installation in the railway track.
Main technical characteristics

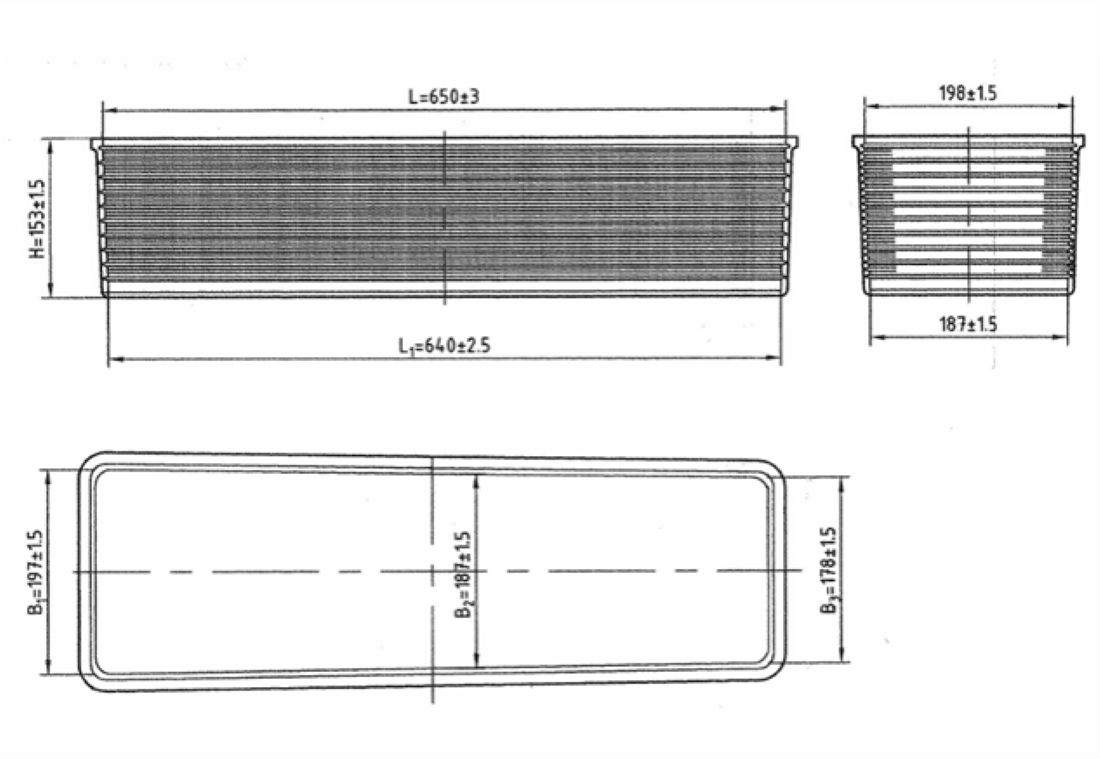

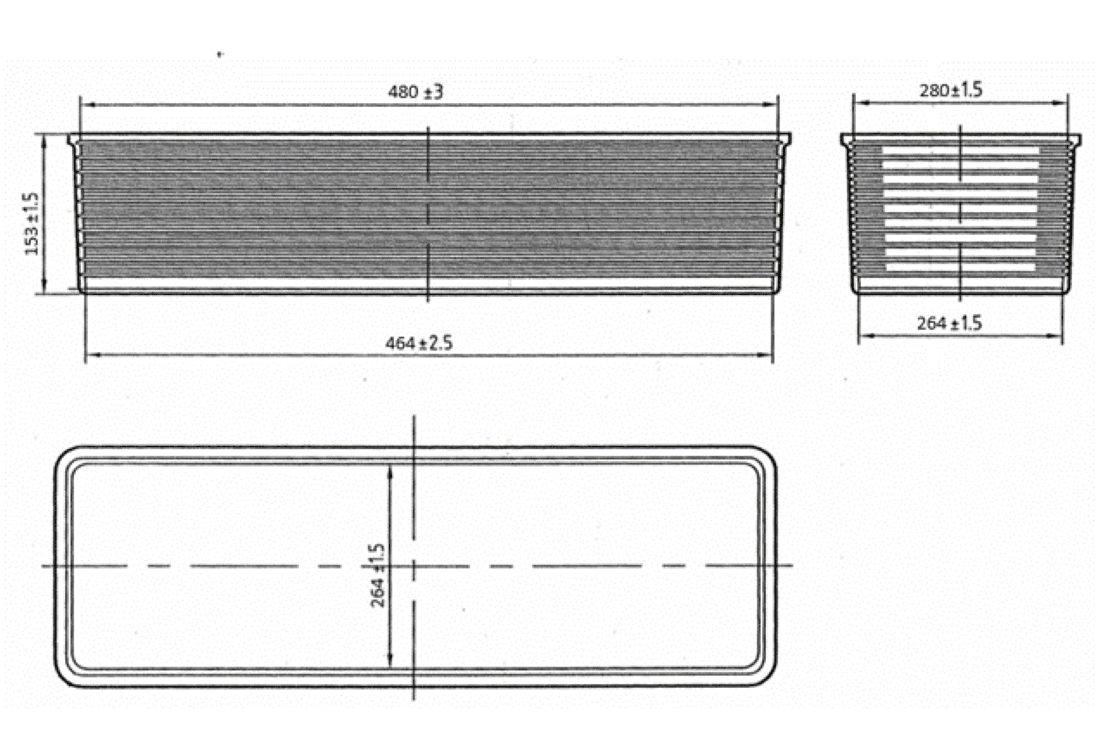

| No. | Parameter | Cover for LVT-M | Cover for LVT-M1 |
|---|---|---|---|
| 1 | Cover height, mm | 153±1.5 | 153±1.5 |
| 2 | Cover internal length, mm | 650±3 | 480±3 |
| 3 | Internal base length, mm | 197±1.5 | 464±2.5 |
| 4 | Width of the internal base of the cover B1, mm | 197±1.5 | 264±1.5 |
| 5 | Width of the internal base of the cover B2, mm | 187±1.5 | — |
| 6 | Width of the internal base of the cover B3, mm | 178±1.5 | — |
| 7 | Top width of the cover, mm | — | 280±1.5 |
| 8 | Shore A hardness, within | 65–80 | 65–80 |
| 9 | Tensile strength before aging, N/mm², min | 12 | 12 |
| Tensile strength after aging, N/mm², min | 10 | 10 | |
| 10 | Elongation before aging, %, min | 250 | 250 |
| Elongation after aging, %, min | 180 | 180 |
