TU 23.61.12-017-47623493-2026
The reinforced concrete block is designed for fastening the bracket of the contact rail suspension assembly.
The block is used on metro tracks in ballastless track superstructure with reduced vibration, using LVT-V (LVT-M1) half-sleepers.
The block is designed for tracks with R65 and R50 rails.

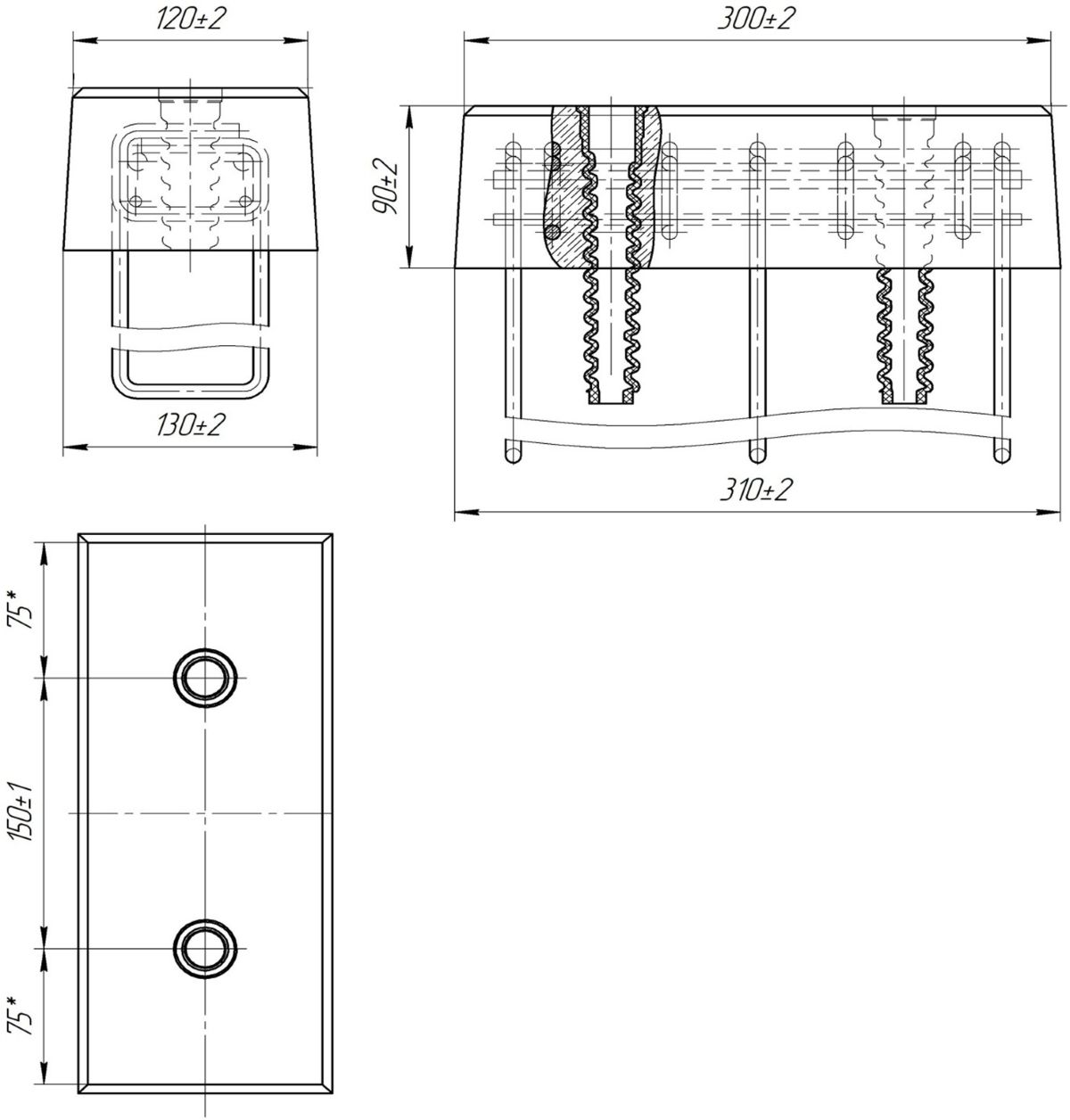

Overall dimensions, mm: 310 × 130 × 90
Block weight, kg: 9.6
The blocks are made of heavy concrete in accordance with GOST 26633, compressive strength class: not less than B50.
Concrete frost resistance grade: not less than F200.
