Concrete deckings for vehicle passage consist of reinforced concrete slabs and elastic rubber profiles designed to prevent slab displacement during vehicle movement across the railway crossing.
The required crossing width is achieved by using the appropriate number of slabs, in multiples of 1.5 m.

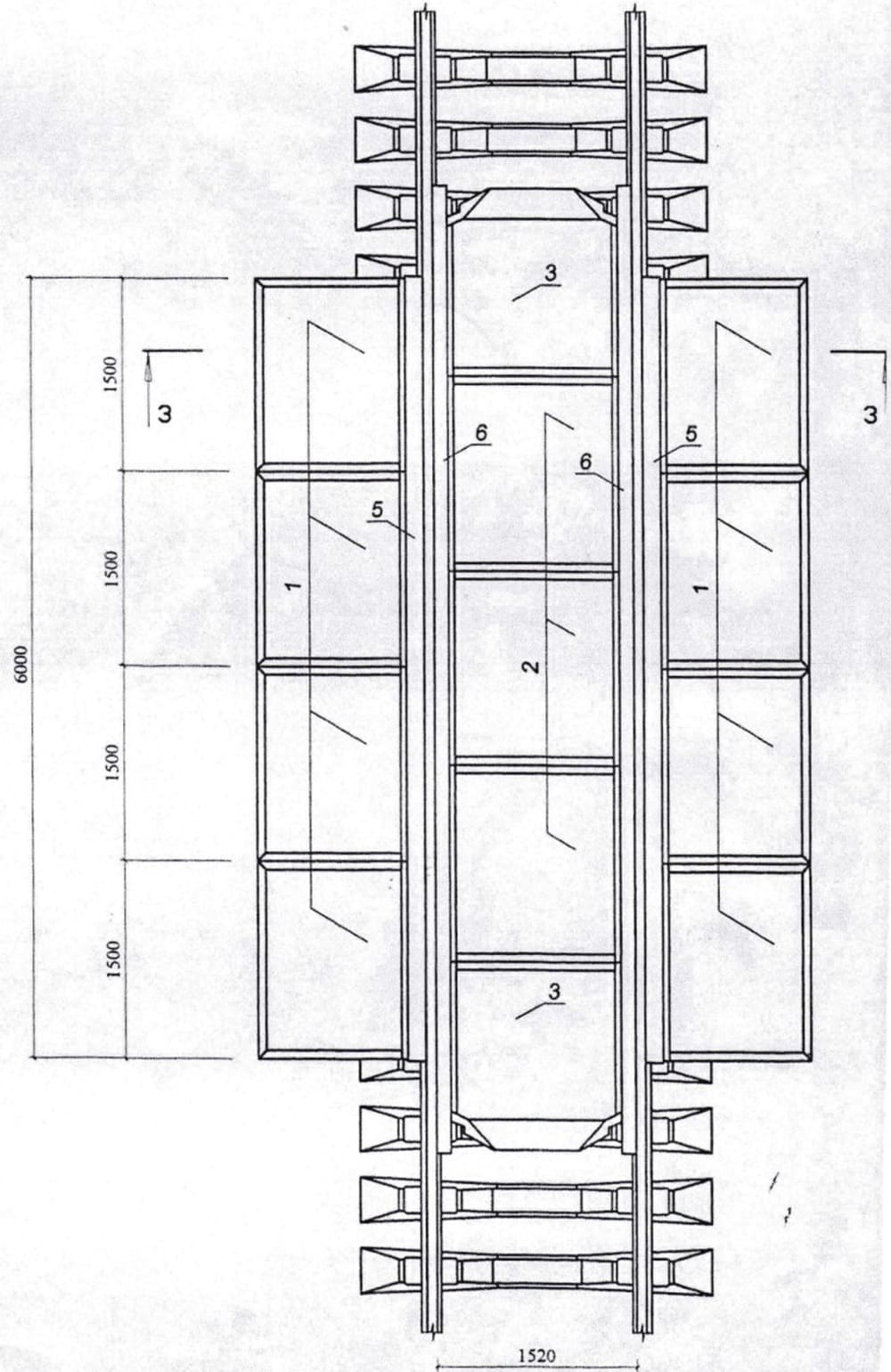

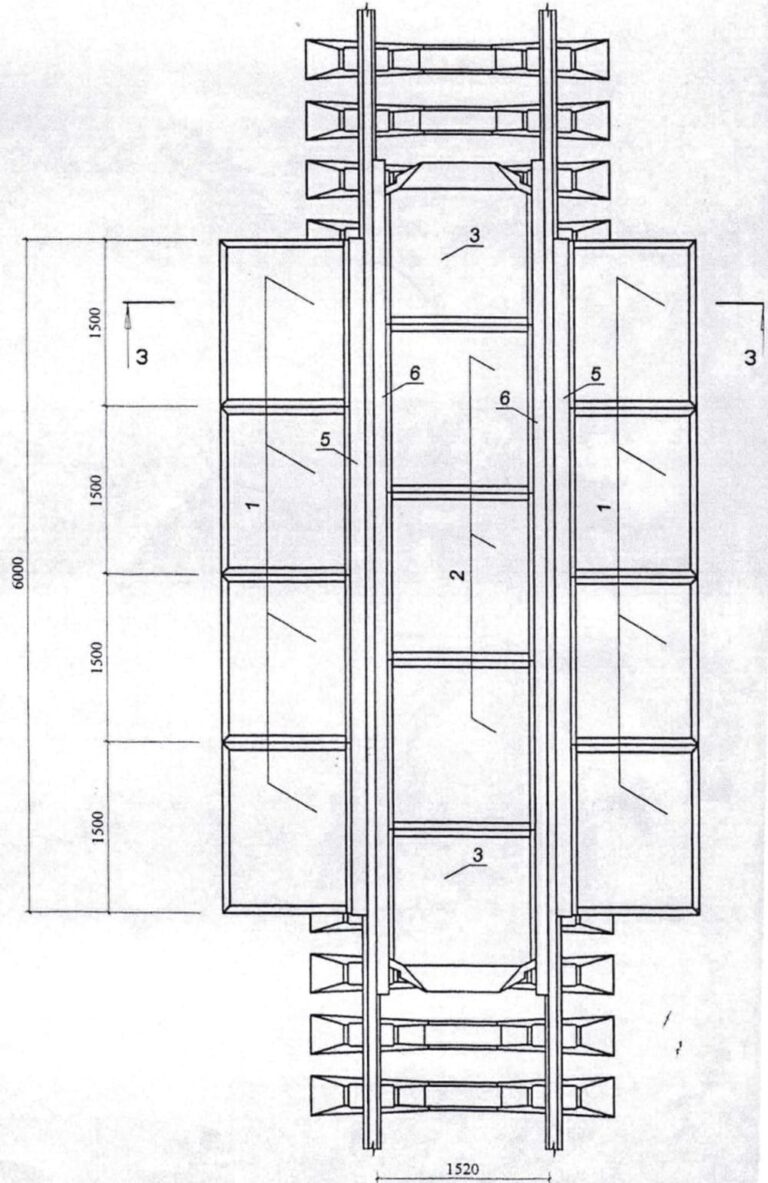

Decking configuration, project A1.BT.000, width 6.0 m with rebound slabs on reinforced concrete sleepers and R-65 rails
| Name | Dimensions, mm | Weight, kg | Quantity, pcs |
|---|---|---|---|
| Inner slab | 1500 × 1300 × 190 | 855 | 3 |
| Inner slab with bumper | 1500 × 1300 × 240 | 925 | 2 |
| Outer slab | 1500 × 1160 × 150 | 615 | 8 |
| Inner pad | 1000 | 12.8 | 14 |
| Outer pad | 1000 | 21 | 12 |
| Fastening assembly kit | — | — | 16 |
No project photos are available.
